CORTEN STEEL SHEET & PLATE | JISG 3125 SPA-H Corten Steel Sheet And Plate | IRSM 41-97 Corten Steel Sheet And Plate suppliers in india
ASTM 588 GR.A Corten Steel Sheet And Plate | ASTM 242 TYPE-1 Corten Steel Sheet And Plate

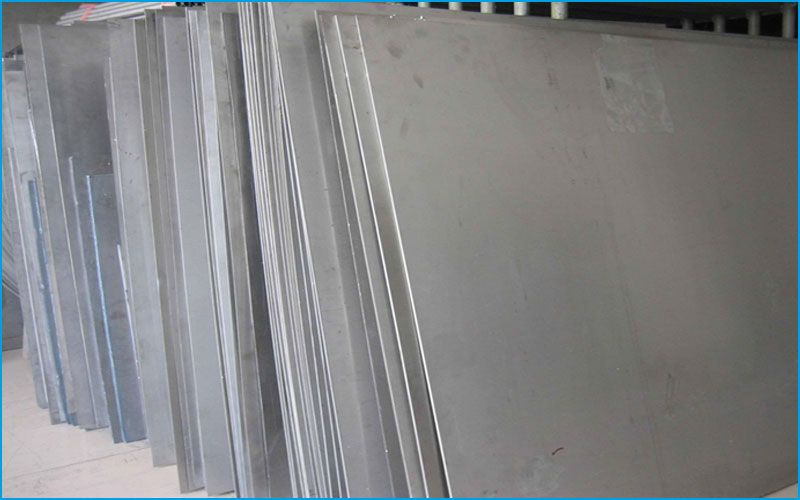

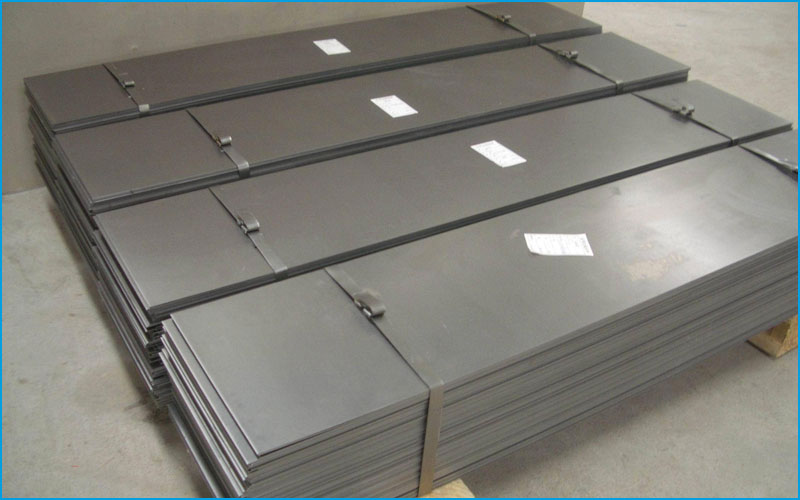

We are well known stockiest, exporter and supplier of CORTEN STEEL SHEETS & PLATES. Please find the below specification of CORTEN STEEL SHEET & PLATE. This specification covers minimum-wall-thickness, seamless and electric-resistance welded, low-alloy steel tubes for pressure containing parts such as economizers or other applications where corrosion resistance is important.
We offers JISG 3125 Spa-H Corten Steel Sheet And Plate , Irsm 41-97 Corten Steel Sheet And Plate , Astm 588 Gr.A Corten Steel Sheet And Plate , Astm 242 Type-1 Corten Steel Sheet And Plate , Astm A588 Corten Steel Sheet And Plate, A709-50w Corten Steel Sheet And Plate, Ar400 Corten Steel Sheet And Plate, & A242 Weathering Steel.
We export CORTEN STEEL SHEET & PLATE:
- Thickness: from 0.8 mm to 50mm
- Width range : from 750mm to 1500mm
- Length range : upto 12,000mm
- Grade:CORTEN A
- Standard No.:JISG 3125 SPA-H, IRSM 41-97
- ASTM Standard: ASTM 588 GR.A, ASTM 242 TYPE-1
- Application: Weather & Corrosion Resistant Steel
Chemical Properties
Corten – A |
ASTM 588 Grade A |
ASTM 242 TYPE -1 |
IRSM 41 -97 |
|
|---|---|---|---|---|
Carbon, Max |
0.12 |
0.19 |
0.15 |
0.10 |
Manganese | 0.20-50 |
0.80-1.25 |
1.00 |
0.25-0.45 |
Phosphorus |
0.07-0.15 |
0.04 |
0.15 |
0.07-0.11 |
Sulphur, max |
0.030 |
0.05 |
0.05 |
0.030 |
Silicon |
0.25-0.75 |
0.30-0.65 |
0.25-0.40 |
0.28-0.72 |
Nickel, max |
0.65 |
0.40 |
- |
0.20-0.49 |
Chromium |
0.50-1.25 |
0.40-065 |
- |
0.30-0.50 |
Molybdenum, max |
- |
- |
- |
- |
Copper |
0.25-0.55 |
0.25-0.40 |
0.20 min |
0.30-0.39 |
Vanadium |
- |
0.02-0.10 |
- |
0.050 |
Aluminimum |
- |
... |
- |
0.030 |
Mechanical Properties
Tensile Strength |
Min. Yield Point |
Elongation |
|
|---|---|---|---|
CORTEN A |
[470 - 630 MPa] |
[355 MPa] |
20 % min |
ASTM 588 GR. A |
[485 MPa] |
[345 MPa] |
21% min |
ASTM 242 TYPE -1 |
[480 MPa] |
[345 MPa] |
16% min |
IRSM 41- 97 |
[480 MPa] |
[340 MPa] |
21% min |
EXPORTING CORTEN STEEL SHEET & PLATE WORLDWIDE:
With huge stock and worldwide networks, SOLITAIRE OVERSEAS is one of the most prefereed vendor for supply of Jisg 3125 Spa-H Corten Steel Sheet And Plate , Irsm 41-97 Corten Steel Sheet And Plate , Astm 588 Gr.A Corten Steel Sheet And Plate , Astm 242 Type-1 Corten Steel Sheet And Plate , Astm A588 Corten Steel Sheet And Plate, A709-50w Corten Steel Sheet And Plate, Ar400 Corten Steel Sheet And Plate, & A242 Weathering Steel to INDONESIA, AUSTRALIA, CANADA, USA, NEW ZEALAND, DUBAI, SAUDI ARABIA, TANZANIA, MOROCCO, CHILE, PERU, KENYA, THAILAND, ENGLAND, PHILLIPINES, DUBAI, QATAR, JORDAN, KUWAIT, OMAN, ETC.
ADDITIONAL REQUIREMENTS:
We can offer pickling or shot blasting as an additional service as per client requirements. For any enquiries please mail on mahir@solitaireoverseas.com or get in touch with MR VISHAL SHETH - +91-9619103479
